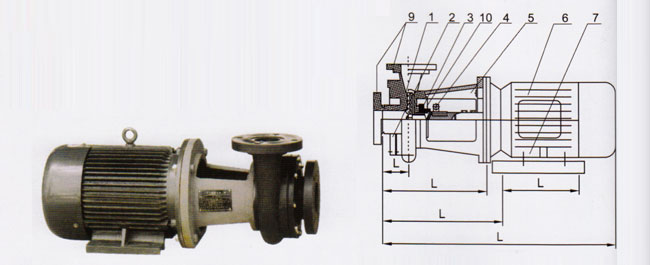

I. Structural features and model

1. FP centrifugal pump has features such as light weight, high strength, no scaling, and good corrosion resistance.

2. Synchronous injection of pump shat and impeller.

3. Direct connection type transmission, high efficiency.

4. Model demonstration.

II. Specification and technical parameters

III. Installation, utilization and maintenance of FP centrifugal pump

1, the parts must be inspected before use and, if abnormal should be promptly corrected.

2, the inlet tube and outlet pipe to separate the anchor is not directly supported on the pump flange.

3, must be filled with liquid before use is strictly prohibited idling, coasting to burn off the fluid mechanical seal, impeller killed.

4, before turning attention to the steering pump, such as reverse immediately shut down, correct steering. Reversal will damage the mechanical seal, impeller killed.

5, use, mechanical seal leakage is found, you can relax mechanical seal ring two screws. After securing adequate advance

6, before stopping to close the liquid outlet valve, then off power to prevent liquid reflux.

7, mechanical seal Impeller is wearing parts such as found a large leakage flow improvement and should be replaced.
